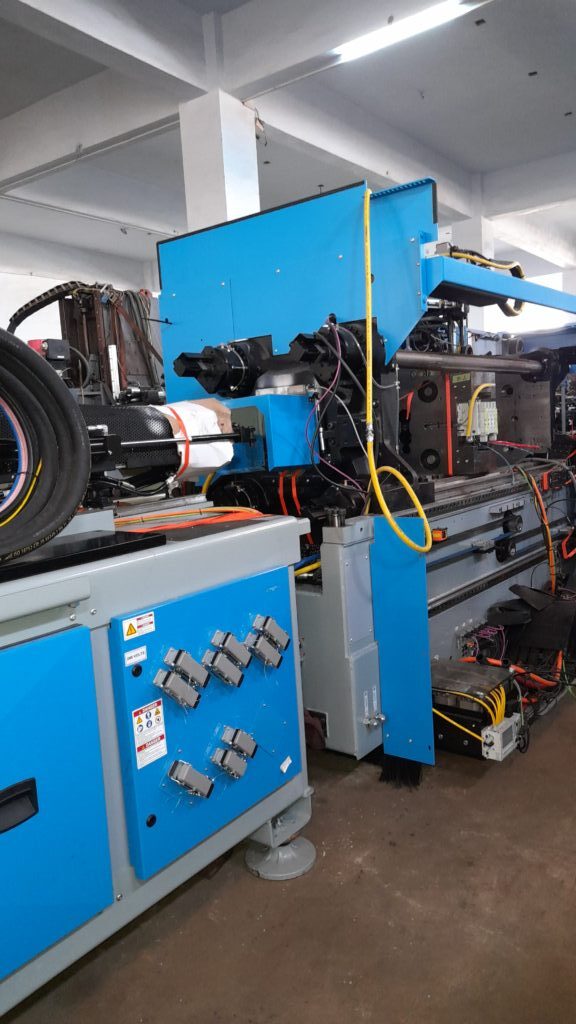

INJECTION MOLDING MACHINE – ALL ELECTRIC
MAKE: NIIGON
MODEL:NPET150LL
YEAR: 2019
ORIGIN: CANADA
CAPACITY: 150TON
CLAMP FORCE: 1500kN
PLATEN SIZE: 860 x 860mm
TIE BARS: 560 x 560mm
MOLD HEIGHT CUBE (MAX/MIN): 1500/1220mm
MOLD HEIGHT SINGLE FACE (MAX/MIN): 700/450mm
DAYLIGHT (SINGLE FACE): 1350mm
DAYLIGHT (CUBE): 2000mm
CLAMP STROKE (MAX/MIN): 900/650mm
EJECTOR STROKE: 200mm
EJECTOR SPEED (ELEC.): 500 mm/s
